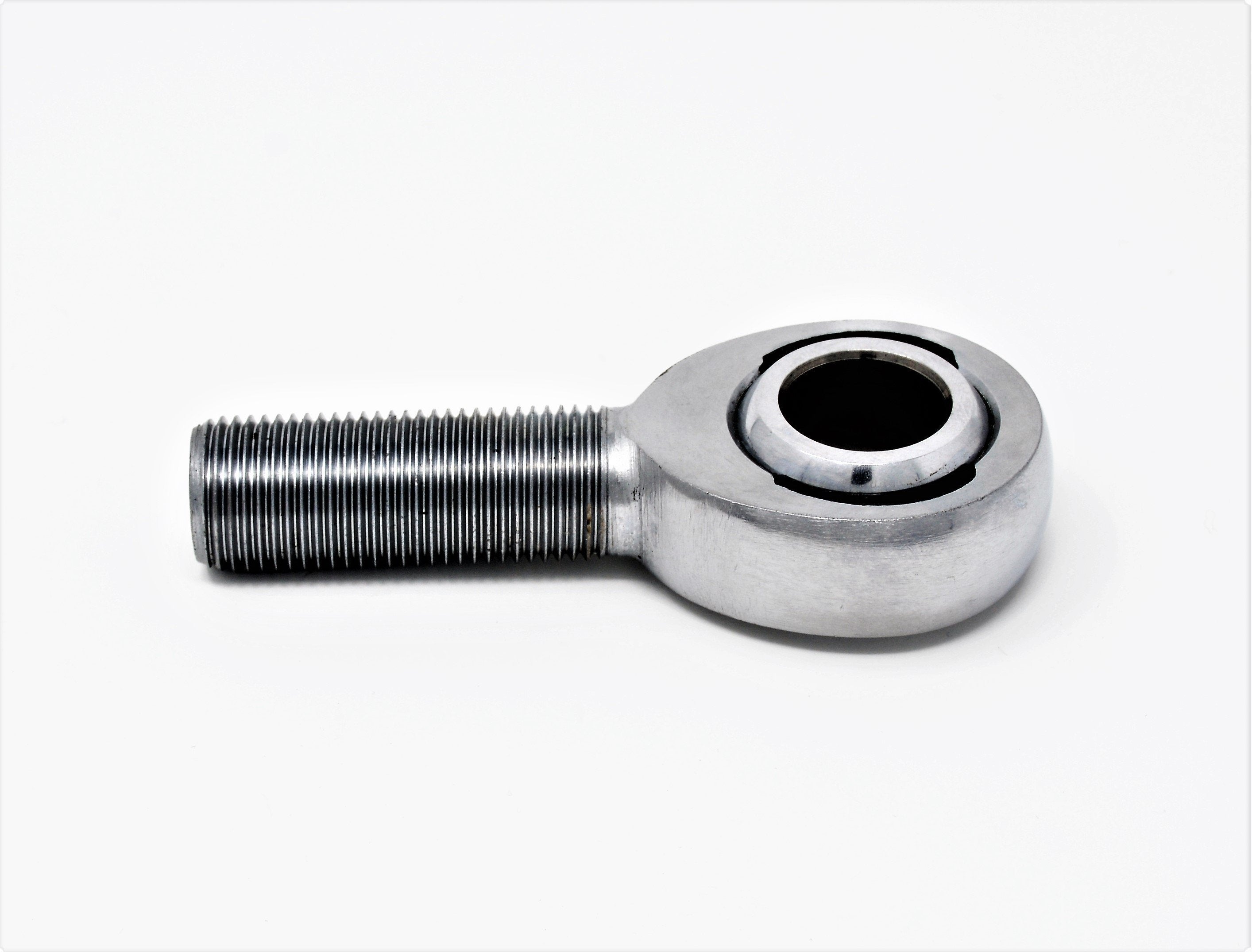

.625" 5/8" Heim Joint KIT Left thread (Reverse)

.625" 5/8" Heim Joint KIT Left thread (Reverse)

Regular price $16.00 USD
Regular price Sale price $16.00 USD
Sale Sold out
Shipping calculated at checkout.

Benefits of your new 5/8" heim joints

  • 4130 Aircraft-grade Chromoly steel
  • Left-Hand thread (Reverse)
  • Chrome plated finish

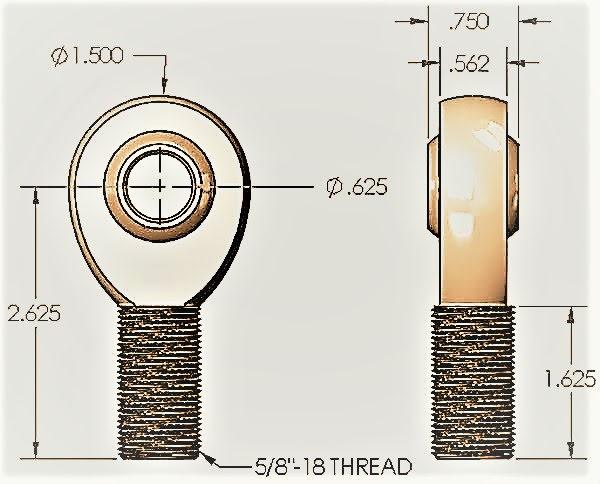

  • 5/8-18tpi with 5/8” hole .625
  • 17,955-pound load rating

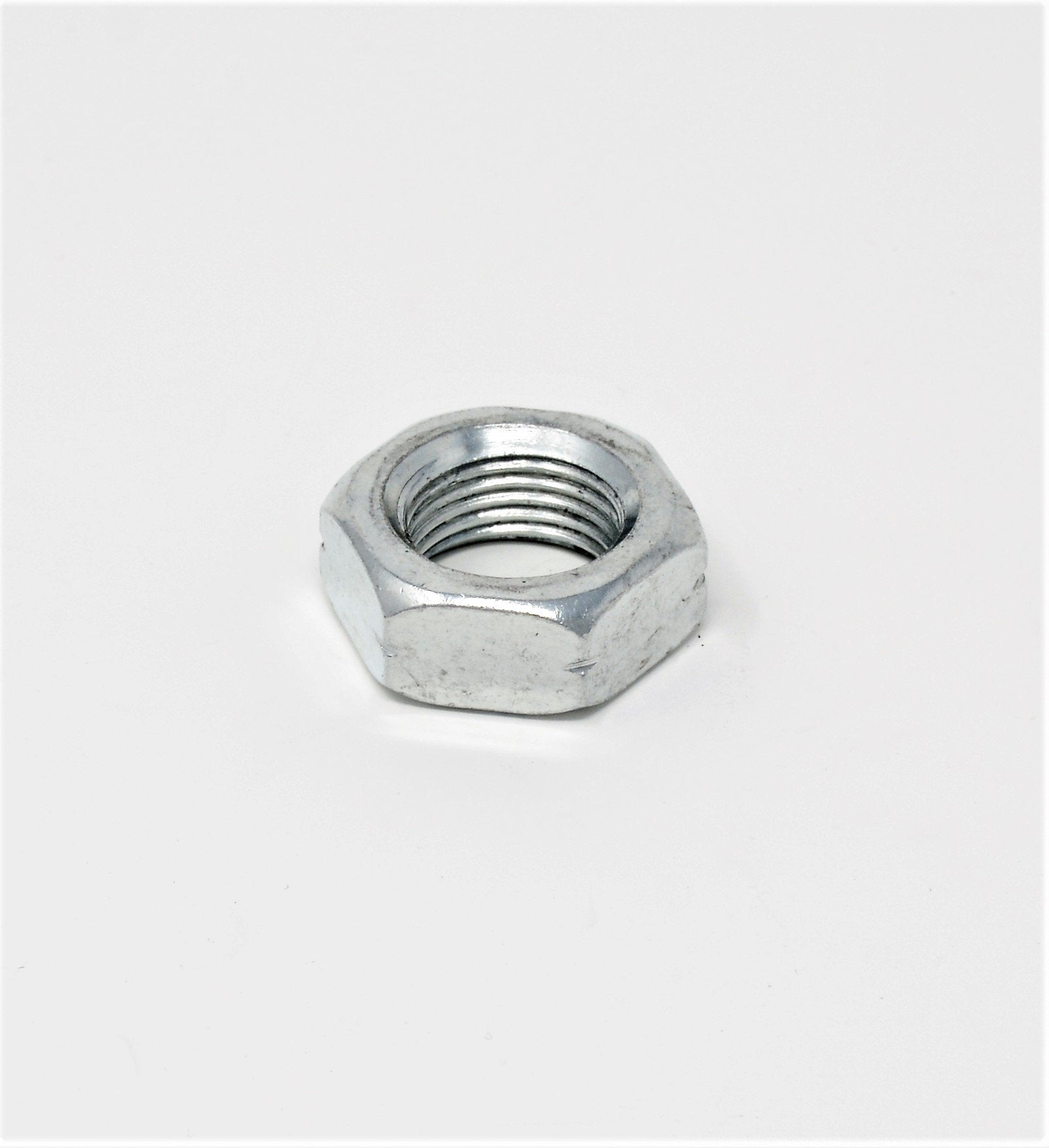

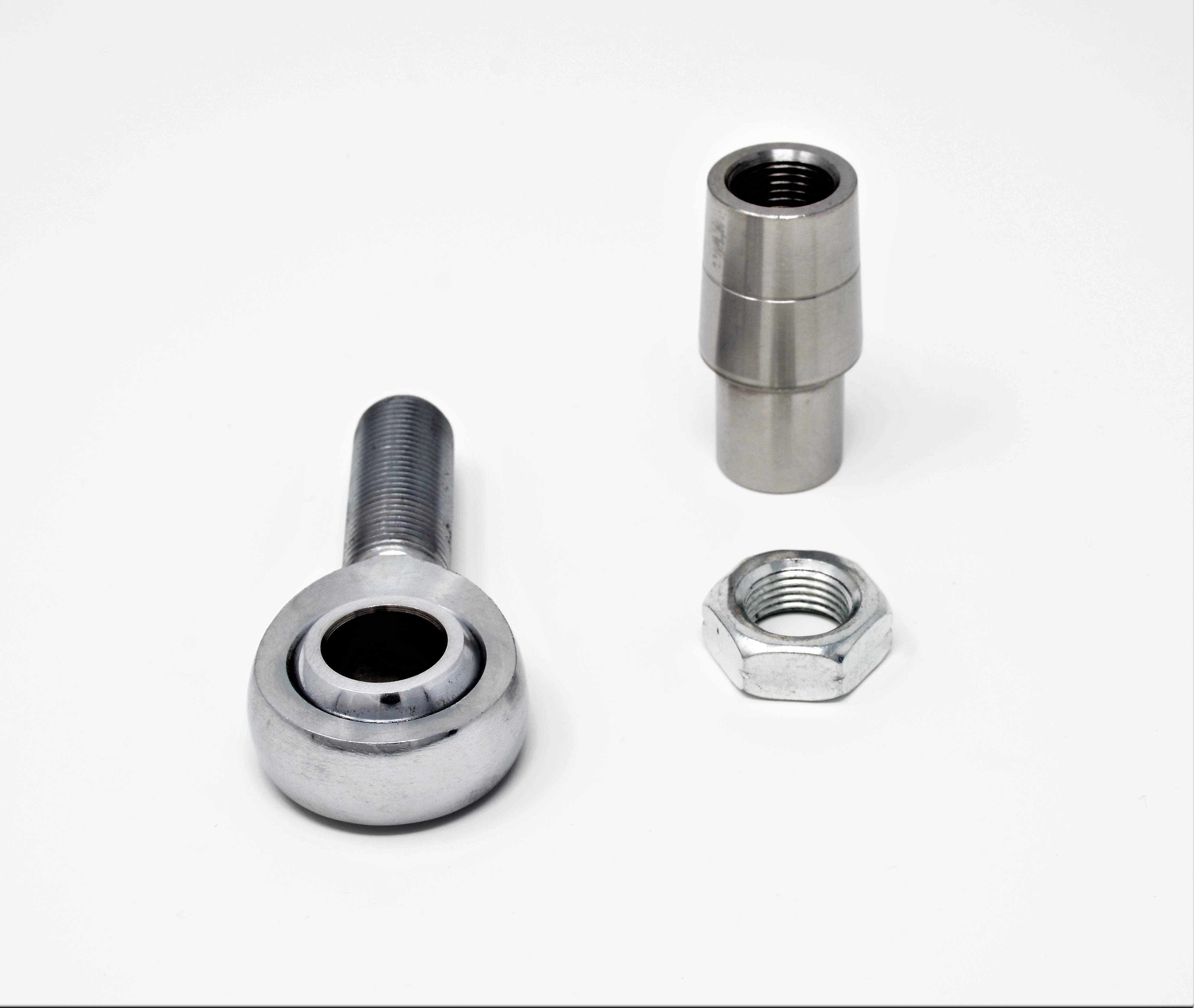

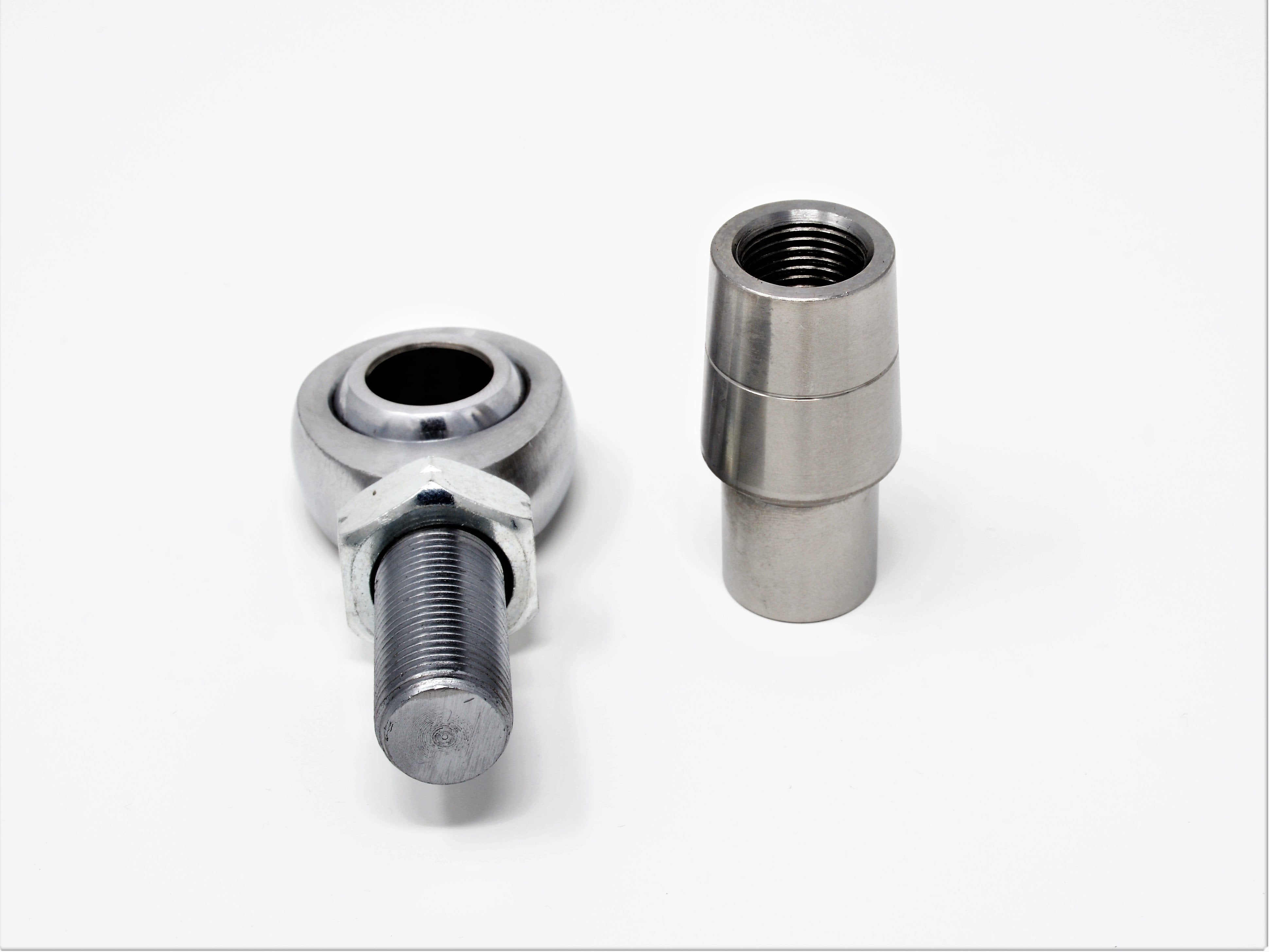

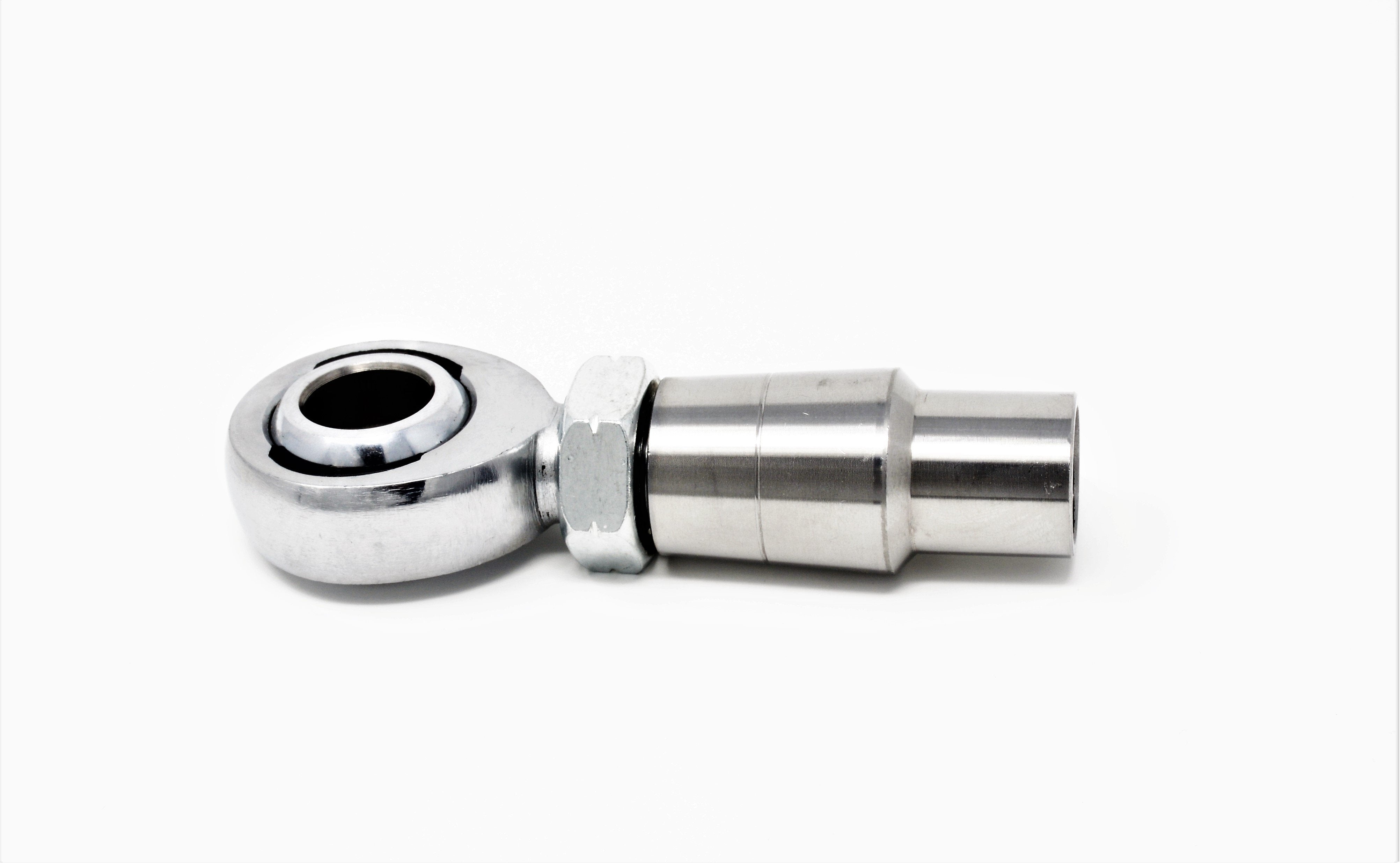

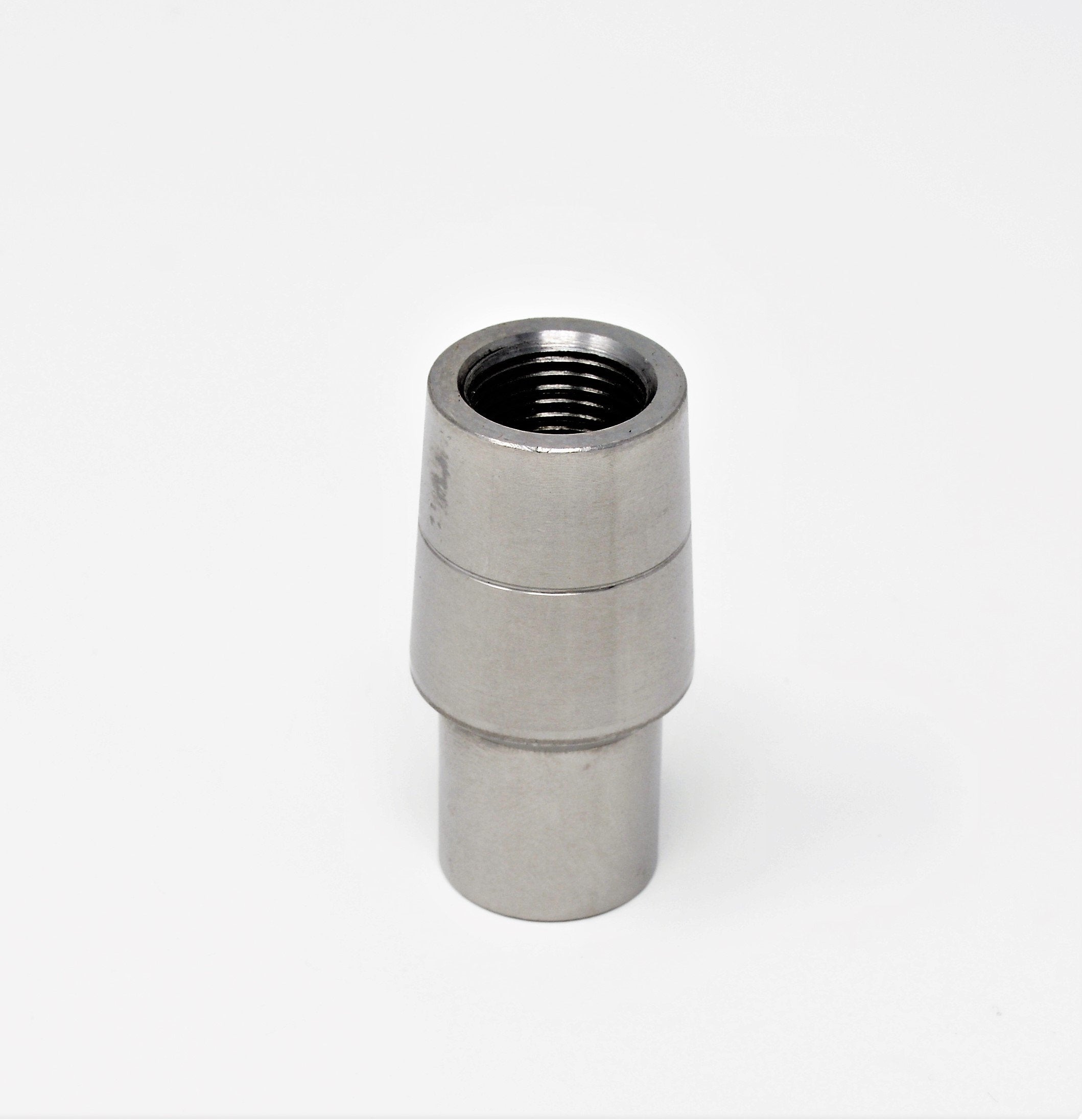

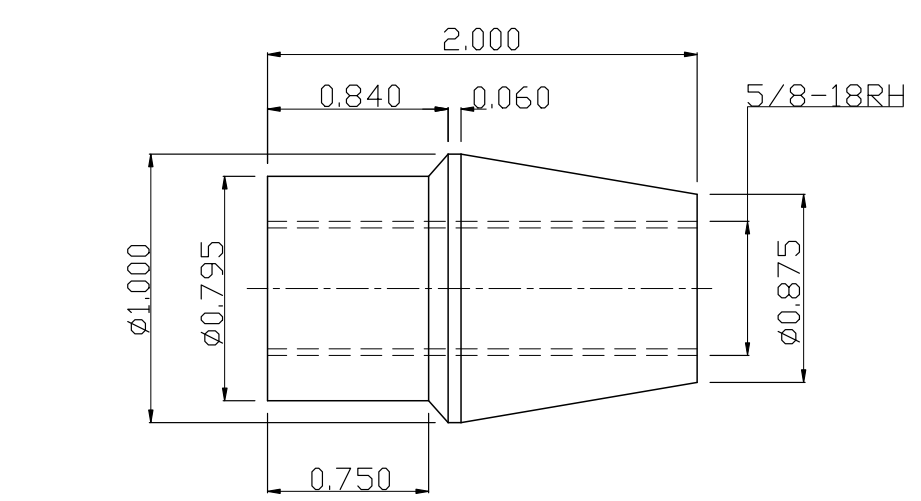

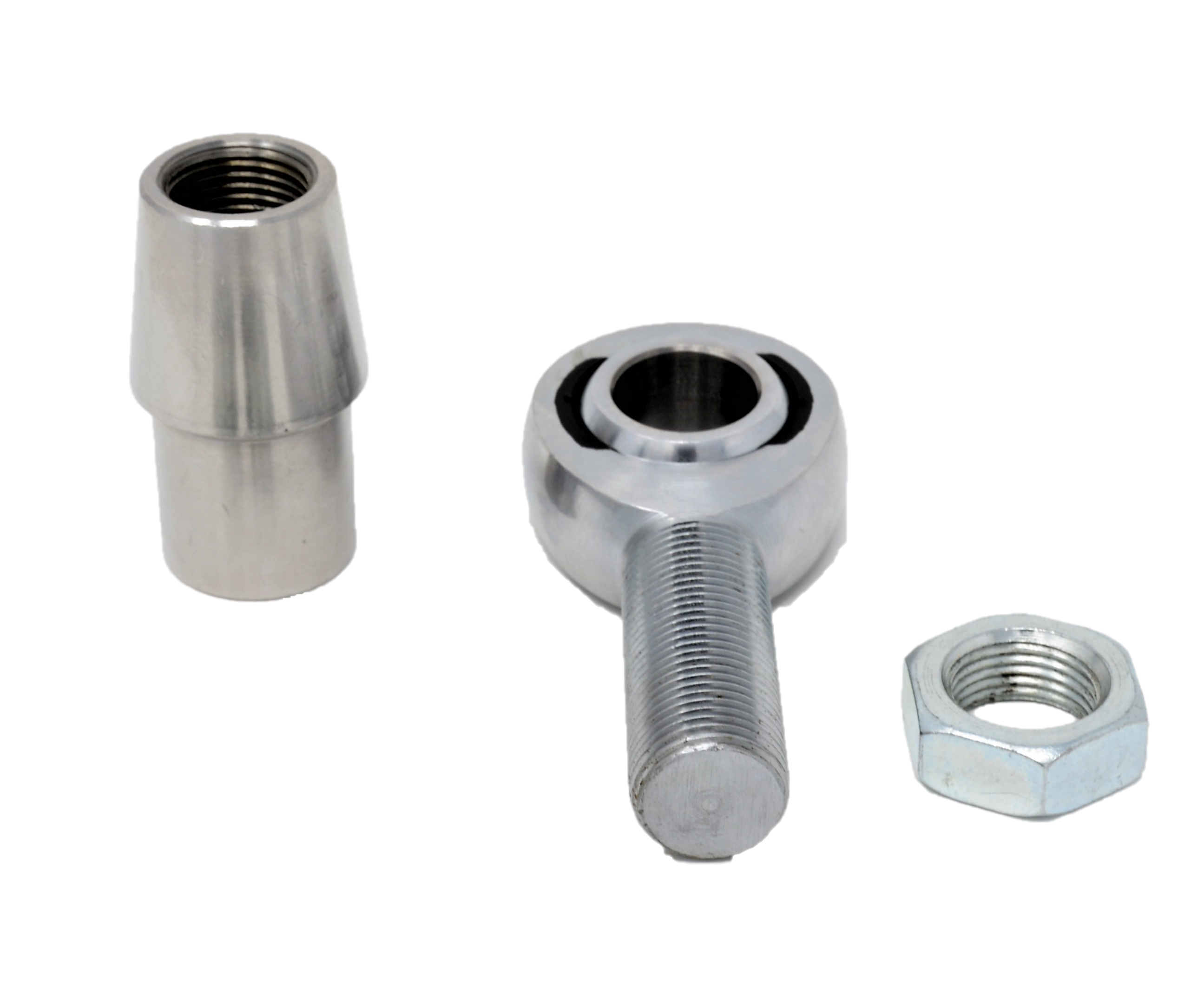

  • Includes Jam nut, and tube adapter for .790” id tube
  • Will fit 1" .090" wall, will NOT fit 1" .120"wall

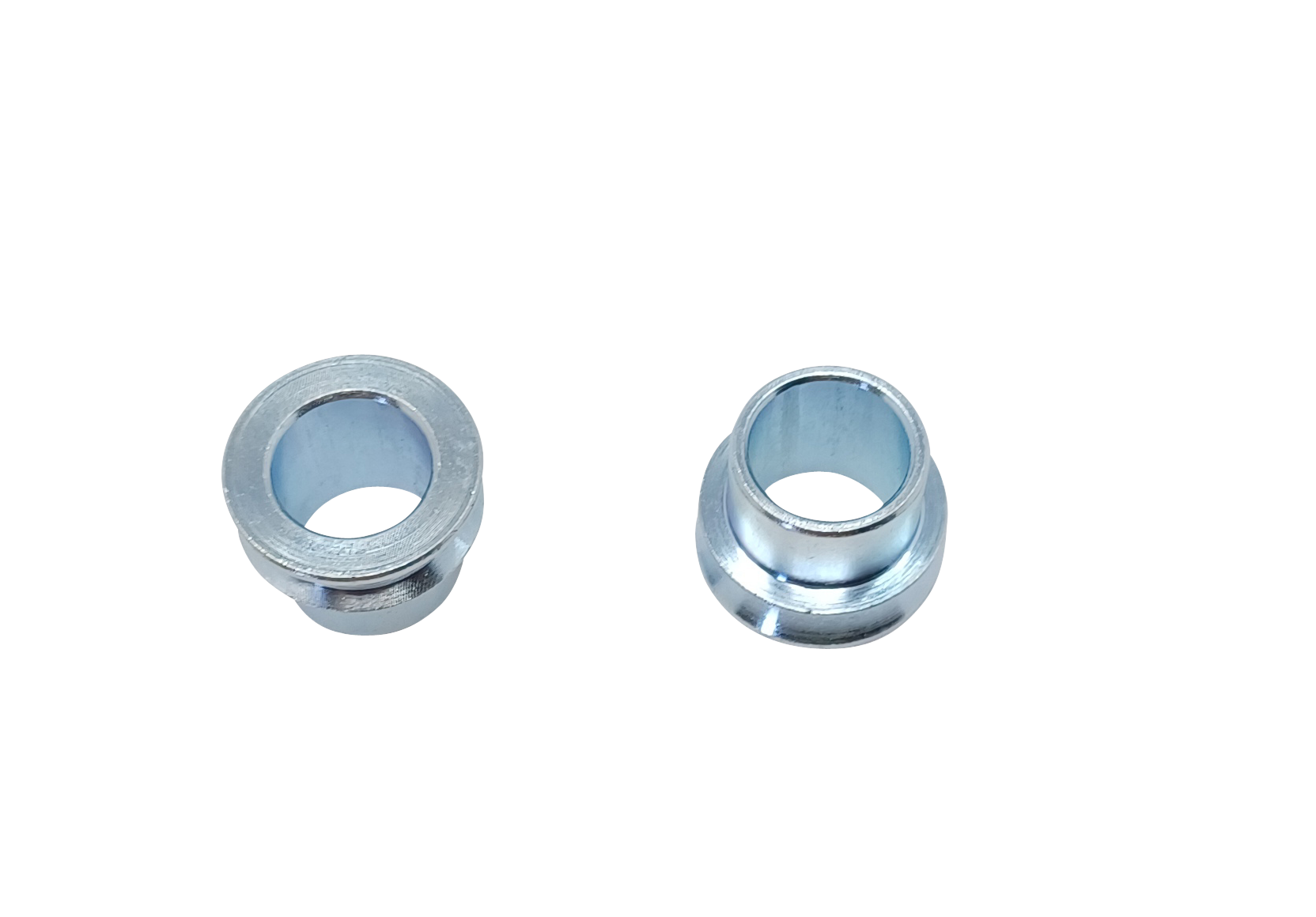

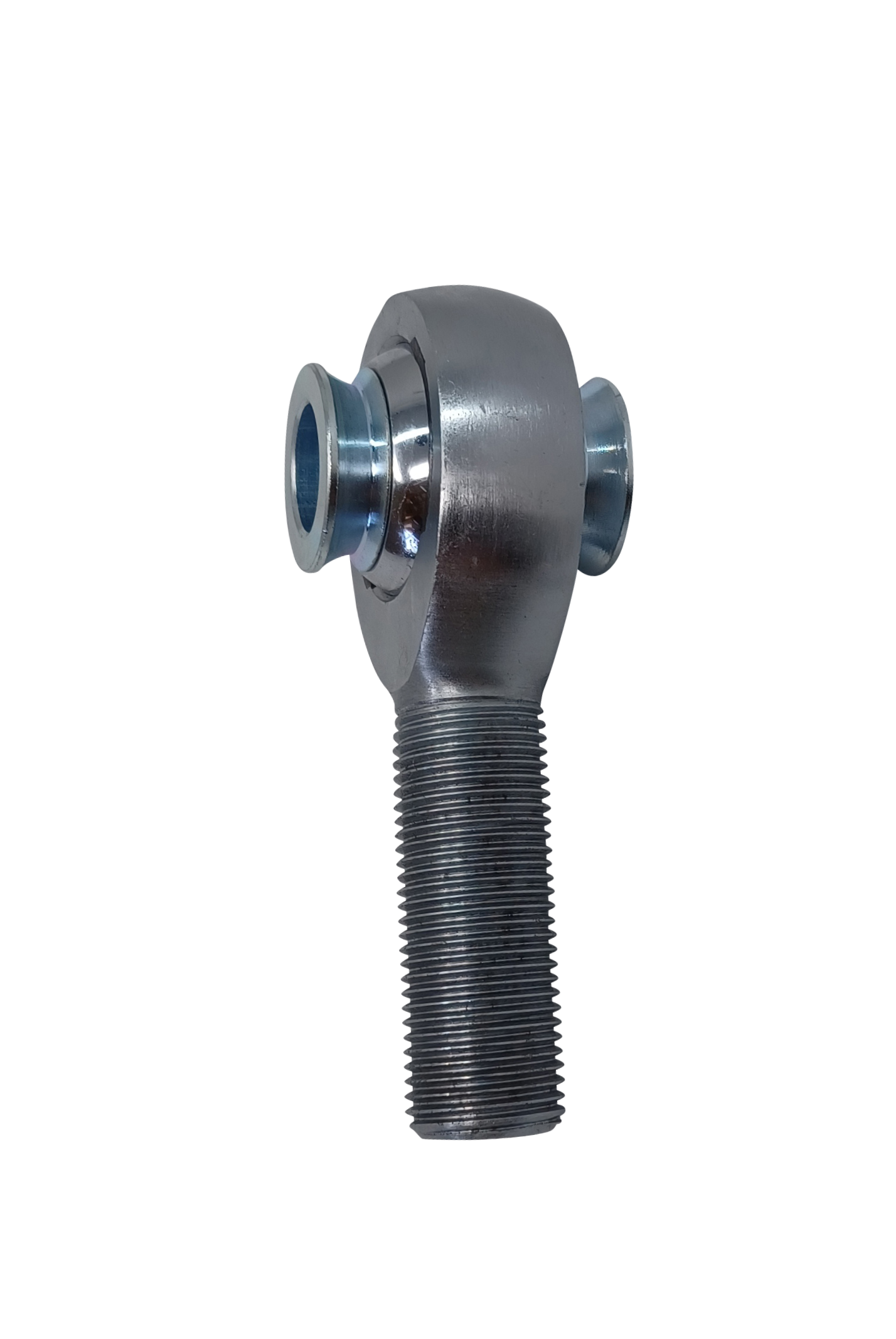

  • Optional misalignment spacers reduce from 5/8" to 1/2" bolt, mounting width of 1.25"
  • They are heat-treated and hard chrome plated to give you a better finish for longer.

The race is Teflon-impregnated nylon for superior durability.
These rod ends have a 5/8” Shaft with 18tpi.
The 5/8” bore is the strongest way to make this heim.

These joints are a great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.
